Wholesale Customized Thermal Conductive Silicone Insulation Pad for GPU CPU Cooling

  • 1
  • 2

Brand Name : ZIITEK

Model Number : TIF780HZ thermal pad

Certification : UL

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Supply Ability : 100000pcs/day

Delivery Time : 3-5 work days

Packaging Details : 1000pcs/bag

Name : Thermal Silicone Insulation Pad for GPU CPU Cooling Pad With Thickness 0.5-5.0mm Low Thermal Resistance

keyword : Customized Thermal Pad

Material : silicone

Thermal conductivity : 7.0 W/m-K

Thickness : 2.0mmT

Applications : GPU CPU Cooling

Contact Now

Wholesale Customized Thermal Conductive Silicone Insulation Pad for GPU CPU Cooling

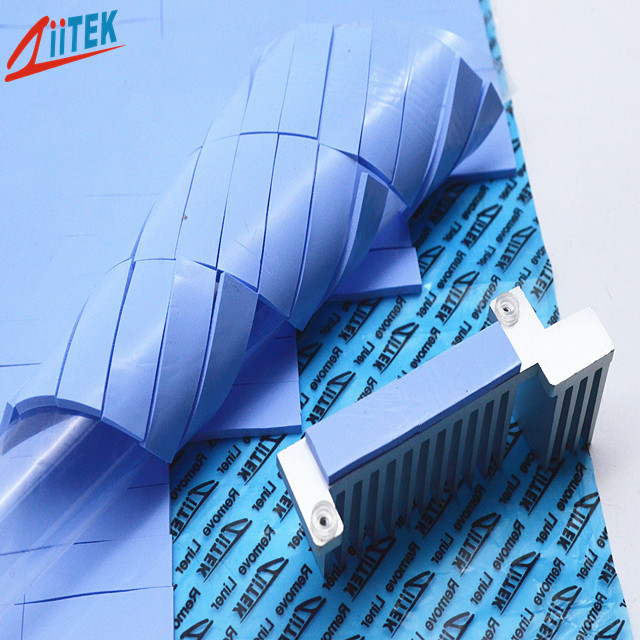

The TIF780HZ is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

TIF700HZ-Series-Datahseet.pdf

Wholesale Customized Thermal Conductive Silicone Insulation Pad for GPU CPU Cooling

Features

> Good thermal conductive: 7.0 W/mK

> Thickness: 2.0mmT

> hardness:55±5

> Colour: Blue

> Easy release construction
> Electrically isolating
> High durability

Applications

> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box

Typical Properties of TIF780HZ Series
Color
 Blue
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

3.45 g/cc

ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
2.0mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness

55±5
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Thermal conductivity
7.0W/mk
ASTMD5470
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

4.5MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
≥ 1.0X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity

7.0 W/m-K
GB-T32064
Visua l/ ASTM D751
ASTM D5470

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Wholesale Customized Thermal Conductive Silicone Insulation Pad for GPU CPU Cooling

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.
